Face recognition and temperature scanner machine

Non-contact infrared binocular live detection
Multiple Language: 10(Traditional / Simplified Chinese,
Italian, English, Spanish, German, French, Portuguese, Russian,Korean, Japanese)
Size: 266mm*123.5mm*45.5mm
Screen size: 7-inch IPS LCD screen
DC12V/3A adapter, available with different plug
Power consuption: 15W(Max)
Recognition Time: 1s
Camera: 200W binocular dynamic camera
Supporting vision optical dynamics: ≥80dB
Face Database: 22,400 people
Storage: EMMC 16G
Network Module: Ethernet and wireless (WIFI)
Operating temperature: 16°C~35°C (60.8°F~95°F)
Accuracy:  ± 0.3°C
Measurement distance: 40cm~60cm

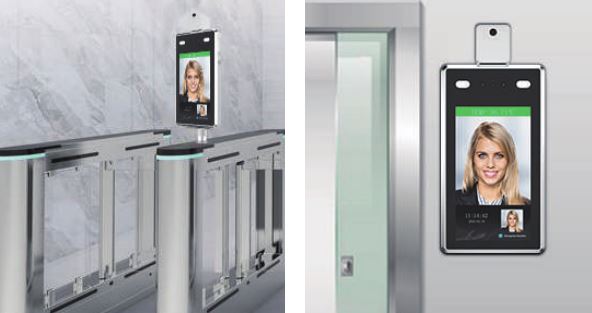

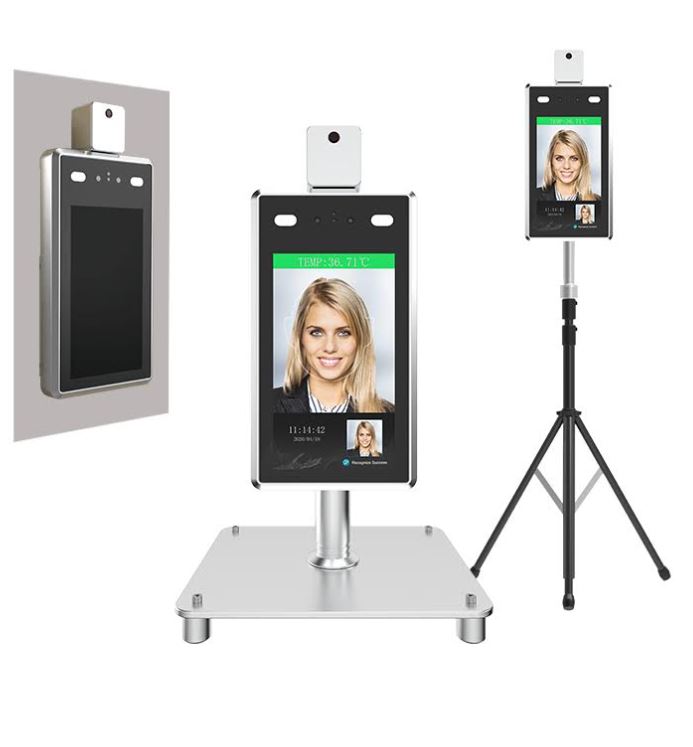

Installation: Wall-mounted, gate-type, floor-mounted,
desktop type ; 4 accessory included
Applicable scene: Supporting gates / enterprise attendance /
face access control / visit registration
Pigtail interface description:
1-WG Out:
Orange D0、White D1、Green GND
WG In: Brown and white D0、Yellow D1、Gray GND
Alarm Out: Relay Switch
USB: 1 USB Interface
Wired network: RJ45 100M
Power: DC12V/3A

Beskrivelse

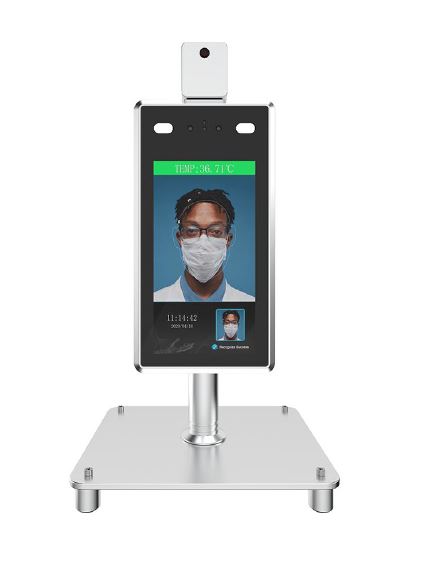

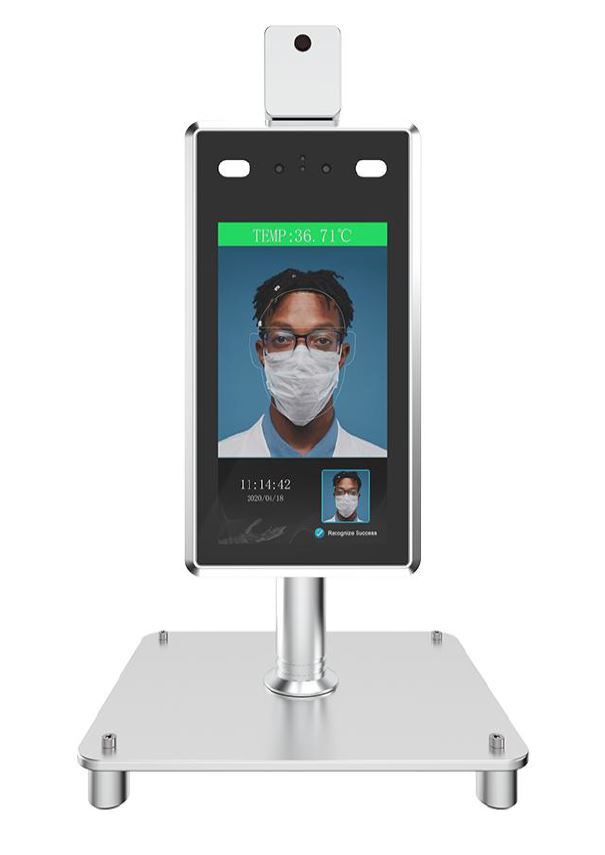

Desktop Accessories List
Cross countersunk head screws
Desktop fixings
Wall-mounted connector
Waterproof network heads
Angle adjustment wrench
Desktop base
Distance stickers
Plastic strip

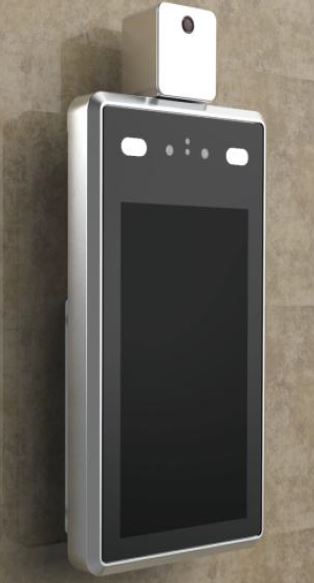

Wall Mounted Accessories List
Countersunk head machine screws
Round head cross tapping screws
Cross countersunk head screws
Four square fixings
Wall-mounted connector
Plastic strip
Plastic expansion screw
Hexagon star machine screw
Hex star screw wrench
Wall fixings
Distance stickers
Waterproof network heads

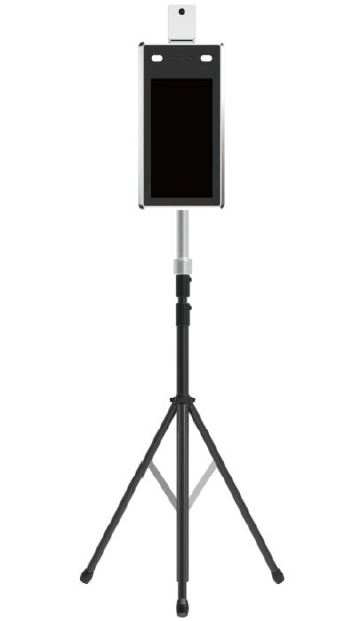

Mobile Mounted Accessories List
Cross countersunk head screws
Desktop fixings
Wall-mounted connector
Waterproof network heads
Mobile stand
Adapter
Distance stickers
Plastic strip
